Spesifikasi Umum 4x2 PK 215 Series |
|
PK 215H |
PK 215L |
PK 215R |
| |

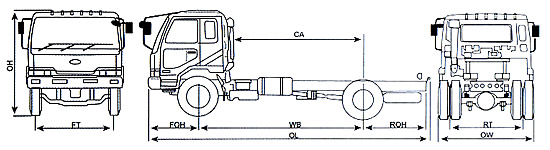

Dimensi |
|
|
|
|
| |
Jarak Sumbu |
mm |
4.500 |
5.100 |
6.050 |
| |
Panjang Total |
mm |
8.200 |
8.940 |
10.000 |
| |
Lebar Total |
mm |
2.415 |
2.415 |
2.415 |
| |
Tinggi Kabin |
mm |
2.710 |
2.710 |
2.710 |
| |
Jarak Pijak Roda Depan |
mm |
1.940 |
1.940 |
1.940 |
| |
Jarak Pijak Roda Belakang |
mm |
1.800 |
1.800 |
1.800 |
| |
Julur Depan |
mm |
1.280 |
1.280 |
1.280 |
| |
Julur Belakang |
mm |
2.420 |
2.560 |
2.670 |
| |
Jarak Kabin - Gardan Belakang |
mm |
3.610 |
4.210 |
5.160 |
| |
Jarak Terendah ke Tanah |
mm |
250 |
250 |
250 |
| |
|
|
|
|
|
| |
Berat Kosong |
|
|
|
|
| |
Chassis dengan Kabin |
kg |
4.585 |
4.690 |
4.780 |
| |
Sumbu Depan |
kg |
2.843 |
2.908 |
2.964 |
| |
Sumbu Belakang |
kg |
1.742 |
1.782 |
1.816 |
| |
|
|
|
|
|
| |
Berat Bruto Kendaraan |
kg |
15.500 |
15.500 |
15.500 |
| |
|
|
|
|
|
| |
Kemampuan |
|
|
|
|
| |
Kecepatan Maksimum |
|
121 |
121 |
121 |
| |
Radius Putar |
|
7.7 |
8.7 |
10.3 |
| |
Daya Tanjak |
|
0.32 |
0.32 |
0.32 |
| |
|
|
|
|
|
| |
Mesin |
|
FE6TA MESIN DIESEL |
| |
Model |
|
4 langkah injeksi langsung berpendingin air. |
| |
Tipe |
|
segaris turbocharge intercooler |
| |
Diameter x Langkah |
|
108 x 126 mm |
| |
Isi Silinder |
|
6.925 cc |
| |
Output Maksimum (Kw(PS)/rpm) |
|
157 (215)/2.800 |
| |
Torsi Maksimum (N.m(Kgm)/rpm) |
|
588 (60) / 1.800 |
| |
|
|
|
|
|
| |
Kopling |
|
|
|
|
| |
Tipe |
|
Dry Single Plate |
| |
|
|
|
|
|
| |
Gardan |
|
|
|
|
| |
Gardan Depan |
|
Reverse Elliot "I" Beam |
| |
Gardan Belakang |
|
Fully floating, Banjo Type |
| |
|
|
|
|
|
| |
Reduksi Gigi Akhir |
|
Single reduction, hypoid gear |
| |
Perbandingan Reduksi Gigi Akhir |
|
6.833 |
| |
|
|
|
|
|
| |
Tranmisi |
|
MLS62B |
| |
Model |
|
6 Percepatan Maju & 1 Mundur |
| |
Tipe |
|
Syncromesh at 2,3,4,5, and 6 |
| |
Perbandingan Gigi |
1st |
6,718 |
| |
2nd |
4,031 |
| |
3rd |
2,303 |
| |
4th |
1,443 |
| |
5th |
1,000 |
| |
6th |
0,740 |
| |
Rev |
6,121 |
| |
Sistem Kemudi |
|
|
|
|
| |
Tipe |
|
Recirculating ball screw dng |
| |
|
|
hydraulic power assistance |
| |
|
|
|
|
|
| |
Suspensi |
|
|
|
|
| |
Suspensi Kabin |
|
Per Daun Shock Absorber |
| |
Depan |
|
Semielliptic Leaf Spring dng |
| |
|
|
double acting shock absorber |
| |
Belakang |
|
Two-stage Semieliptic leaf Springs |
| |
|
|
|
|
|
| |
Rangka |
|
|
|
|
| |
Tipe |
|
C-Channel with Ladder |
| |
Tinggi x Lebar x Tebal |
|
300 x 80 x 8 mm |
| |
Bagian Utama Luar |
|
|
|
|
| |
Tinggi x Lebar x Tebal |
|
284 x 72 x 3.2 mm |
| |
Bagian Penguat Dalam |
|
|
|
|
| |
|
|
|
|
|
| |
Rem |
|
|
|
|
| |
Utama |
|
Air Over Hydraulic |
| |
Parkir |
|
Manual, Link to Transmission |
| |
Rem Tambahan |
|
Exhaust Brake |
| |
|
|
|
|
|
| |
Roda |
|
|
|
|
| |
Velg |
|
7,00 T - 2 - 8 baut |
| |
Ban |
|
10s00 x 20 - 16 PR |
| |
|
|
|
|
|
| |
Tangki Bahan Bakar |
|
200 liter |
| |
|
|
|
|
|
| |
Sistem Elektrik |
|
|
|
|
| |
Accu |
|
60 Ah 12 Volt x 2 |
